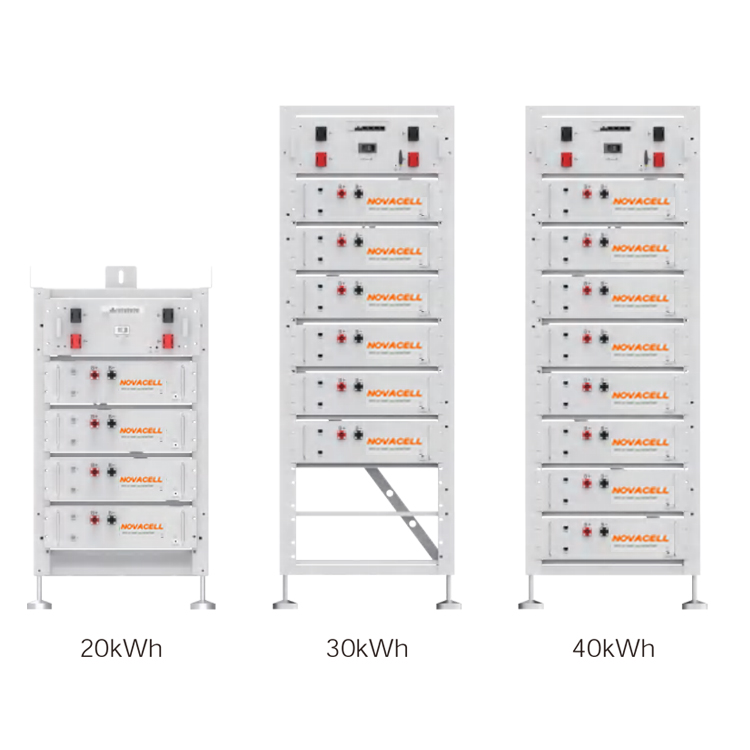

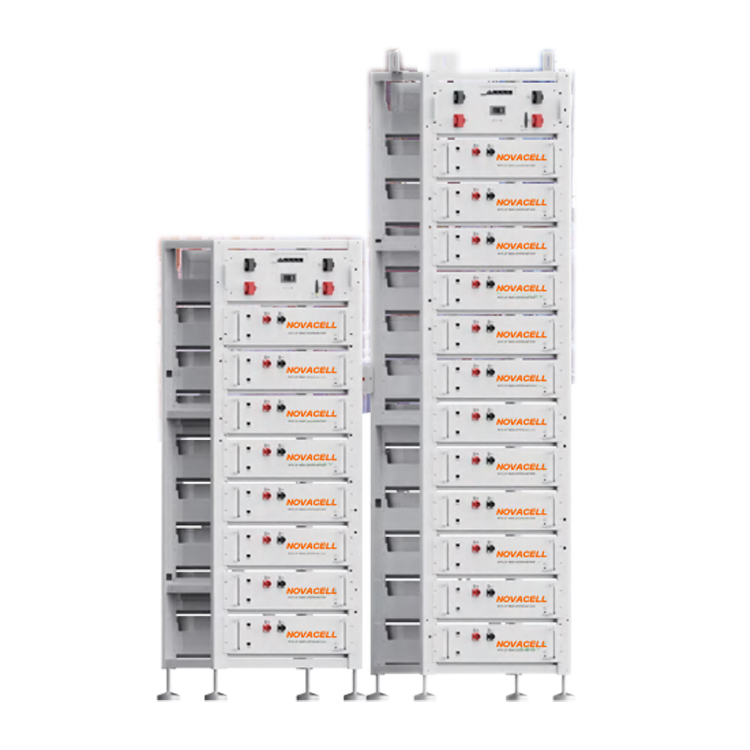

NOVACELL 5.12KWH Module N20K~N60K 20.48kWh 30.72kWh 40.96kWh 51.2kWh 61.44kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles- • SHENZHEN NOVA ENERGY CO LTD 20.48kWh 30.72kWh 40.96kWh 51.2kWh 61.44kWh

Inquire Now

Features

Voltage: 204.8V
Energy: 20.48kWh
Battery Cell: LiFePO4 Battery
Dimension with PCM: 553*503*1011mm
Working temp.: -10~50°C
N.W.: 201.4kgs
IP Rate: IP20
Communication port: CAN/TCP/IP

Advantages

6500+ Life Cycles
Easy Installation
Easy Maintenance
Expandable
Warranty: 3+ years
Cheap cost effective
Most Inverter compatiable
Stackable

Application

Solar Energy Storage
Home Energy storage
Telecom backup power
Data center
UPS
Wind energy storage

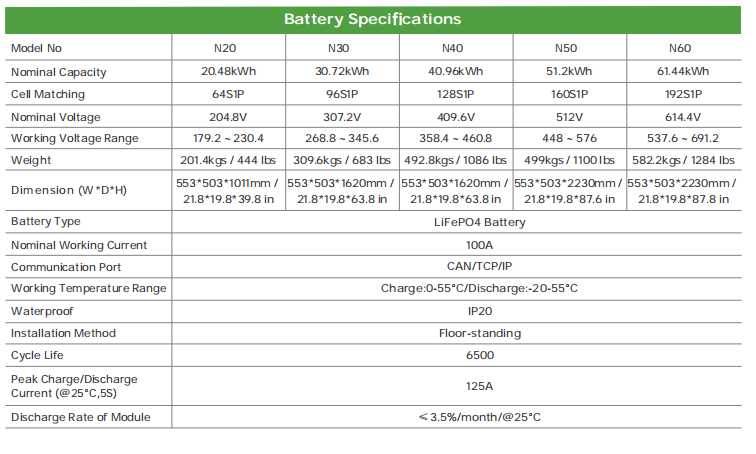

Specification

More details

Electrical Characteristics	Cell Matching	64S1P
	Nominal Capacity	20.48kWh
	Cycle life	6500+ cycles @(25±2℃,0.5C/0.5C,80%DoD)
	Nominal Voltage	204.8V
	Working Voltage Range	179.2 ~ 230.4V
	Nominal Working Current	100A
Mechanical	Certification	IEC62619, CE
	Dimension	5535031011mm
	N.W.	201.4kgs
	PCM	Included
	Lock	Included
	Connector, NTC	TBA
	Switch,Indicator,display	TBA
	Step-up/Step-down	TBD

We have a variety of lithium batteries available, including the 5.12KWH Module, 48v lifepo4 battery, and deye lithium batteries 20.48kWh 30.72kWh 40.96kWh 51.2kWh 61.44kWh

Photo Exhibition

NOVACELL 5.12KWH Module N20K~N60K 20.48kWh 30.72kWh 40.96kWh 51.2kWh 61.44kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles
