  • NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-
  • NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-
  • NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-
  • NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-
  • NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-
  • NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-
  • NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-
  • NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles-
NOVACELL

Inquire Now

Features

  • Voltage: 76.8V
  • Energy: 3.84kWh
  • Battery Cell: LiFePO4 Battery
  • Dimension with PCM: 680*378*660mm
  • Working temp.: -10~50°C
  • N.W.: 157.5kgs
  • IP Rate: IP55
  • Communication port: CAN/RS485

Advantages

  • 6500+ Life Cycles
  • Easy Installation
  • Easy Maintenance
  • Expandable
  • Warranty: 3+ years
  • Cheap cost effective
  • Most Inverter compatiable
  • Stackable

Application

  • Solar Energy Storage
  • Home Energy storage
  • Telecom backup power
  • Data center
  • UPS
  • Wind energy storage

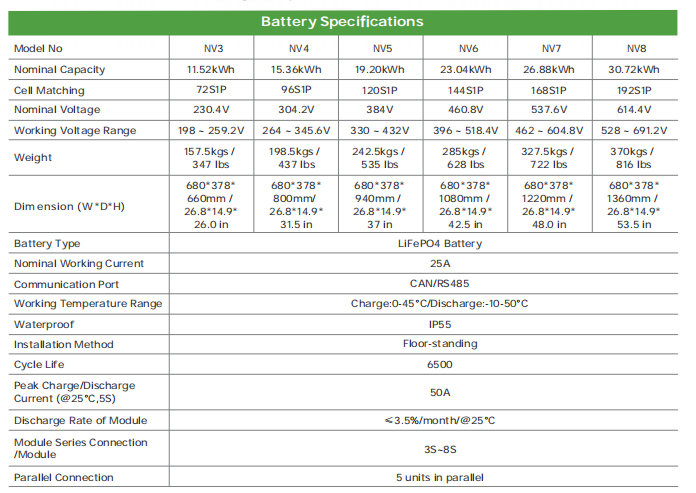

Specification

More details

Electrical CharacteristicsNominal Voltage230.4V
Nominal Capacity11.52kWh
Cycle life6500+ cycles @(25±2℃,0.5C/0.5C,80%DoD)
Nominal Voltage230.4V
Working Voltage Range198 ~ 259.2V
Nominal Working Current25A
MechanicalCertificationIEC62619, CE
Dimension680*378*660mm
N.W.157.5kgs
PCMIncluded
LockIncluded
Connector, NTCTBA
Switch,Indicator,displayTBA
Step-up/Step-downTBD

We have a variety of lithium batteries available, including the 76.8V 3.84kWh Module, 48v lifepo4 battery, and deye lithium batteries 100ah 48v

Photo Exhibition

  • 4
  • Ready for Shipment
  • Rack Mounting Battery 5.12kWh/ 10.24kWh/ 14.34kWh
  • 5

    NOVACELL 76.8V 3.84kWh Module 11.52kWh 15.36kWh 19.20kWh 23.04kWh 26.88kWh 30.72kWh BMS Inverter Lithium Ion Energy Storage Solar Battery Packs 6500+ Life Cycles
